3-way corner connector ISB + assembly set - slot 6 | 30x30
Product details
- Profile system
- ISB
- Slot type
- 6
- Material
- Zinc die-cast
- HS-code
- 7907.00.00.90
Specifications
- Weight [grams]
- 0
Description

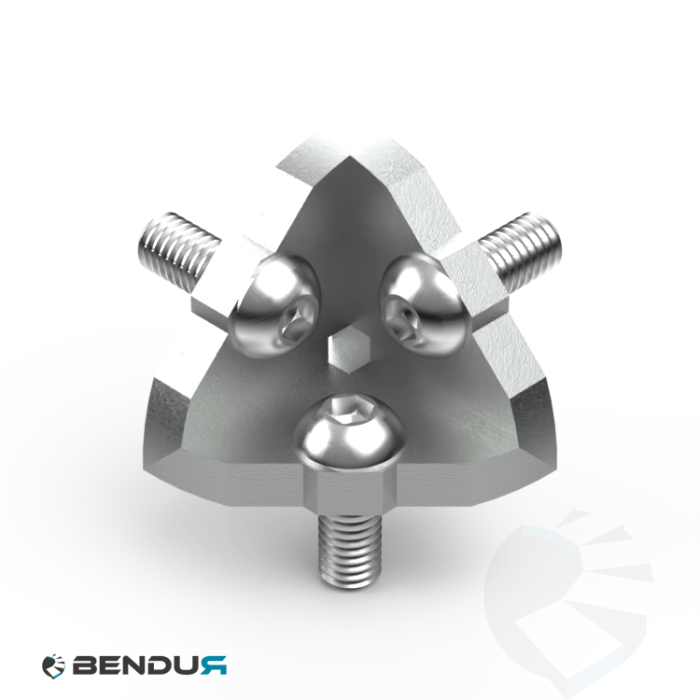

With this 3-way corner connector you join three ISB profiles 30x30 into a corner. It is made for slot 6.
The connector is screwed to the ends of the three profiles, so each profile end needs an M6 thread in its core bore. The screws are in the set.
- Material: die-cast zinc
- For ISB profiles 30x30, slot 6
- Assembly set: 3 button head screws ISO 7380, M6 x 16, zinc plated steel
- Machining: M6 thread in the end of each profile
- Matching black cover caps available separately
How to mount a 3-way corner connector
Example: ISB 3-way connector 40, zinc, on the corner of a frame of three 40x40 slot 8 profiles. The screws go into the core bore, which you tap M8.
-
Step 1: Tap an M8 thread in the core bore of all three profiles.
-
Step 2: Put the 3-way connector on the upright profile. The lugs drop into the slots.
-
Step 3: Push the two horizontal profiles against it with their ends.
-
Step 4: Put an M8 screw through each hole into the core bore of the profile.
-
Step 5: Tighten all three screws with a hex key.
-
Step 6: Optional: press a cover cap onto the 3-way connector. It is sold separately.
View the cover caps
Compare variants
Not sure which variant fits best? Compare the 30 × 30 mm variants of ISB slot 6.
