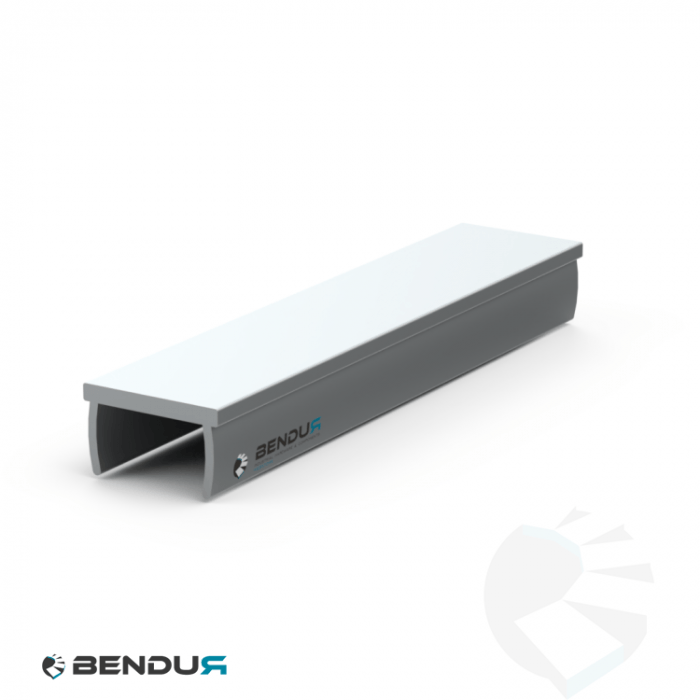

Aluminium cover profile BSB - slot 10 | Anodized
Product details
- Profile system
- BSB
- Slot type
- 10
- Material
- Aluminium
- Standard length [mm]
- 2000
- Width [mm]
- 11.30
- Height [mm]
- 6.60
- Finish
- Anodized
- Color
- Natural
- HS-code
- 7604.29.90.90
- Core Count
- 0
Specifications
- Alloy
- EN AW 6063 - T6
- Layer thickness [μm]
- 10 - 15
- Profile surface [cm²]
- 2.20
- Weight [kg/m]
- 0.10
Description
Compare variants
Not sure which variant fits best? Compare the 11 × 6 mm variants of BSB slot 10.
Downloads
CAD files and documentation — download directly, no registration required.
Machining
Our in-house workshop handles most machining in one go — so the profile arrives ready for assembly.
Custom cutting
Lengths from 20 to 1,940 mm, step 0.1 mm. Length tolerance ±0.2 mm per DIN 12020-2. Deburred as standard.
Tapping
Threading on 1 or 2 end faces. Ready for further assembly.
Custom drilled holes
Positions and diameters via drawing or CAD. Through-bore or blind up to 30 mm.
Milling
T-slot cutouts, cable routing, custom blocks. Quote on request.
