Aluminium profile slot 6 | 20x40 - BSB
Product details
- Profile system
- BSB
- Slot type
- 6
- Material
- Aluminium
- Standard length [mm]
- 3060
- Width [mm]
- 20
- Height [mm]
- 40
- Finish
- Anodized
- Color
- Natural
- HS-code
- 7604.29.90.90
- Core Count
- 2
- Thread diameter [mm]
- M6
Specifications
- Alloy
- EN AW 6063 - T6
- Layer thickness [μm]
- 10 - 15
- Profile surface [cm²]
- 2.90
- Moment of inertia Ix [cm⁴]
- 4.60
- Moment of inertia Iy [cm⁴]
- 1.20
- Section modulus Wx [cm³]
- 2.50
- Section modulus Wy [cm³]
- 1.40
- Torsion index It [cm⁴]
- 0.68
- Weight [kg/m]
- 0.80
Description

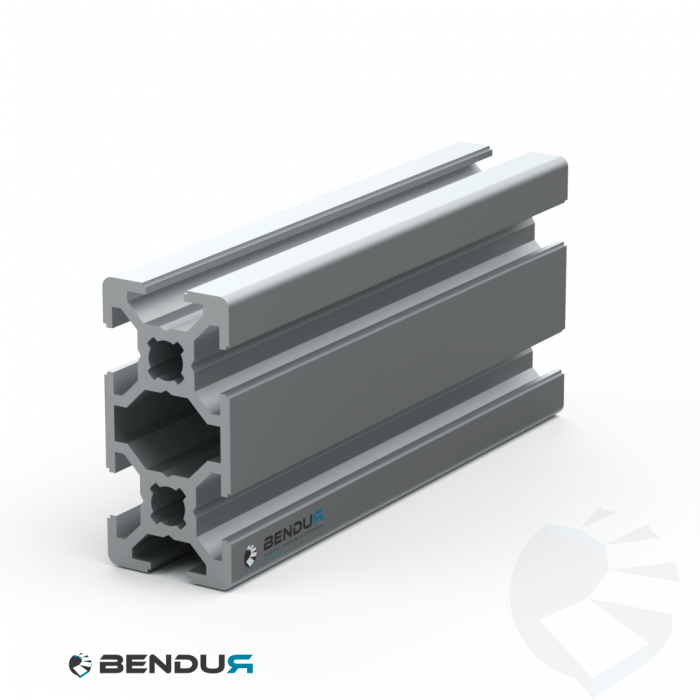

The BSB aluminium construction profile 20×40 mm, slot 6 is a versatile profile with 6 open 6 mm T-slots. The open slots let you make connections in no time – from machine frames to transport carts – without machining the profile itself. The core holes take an M6 internal thread, ideal for mounting levelling feet and connecting plates or for joining two profiles.
The profile is extruded from EN AW-6063 T6 aluminium to DIN EN 573 and anodised natural as standard (E6 C0, layer thickness 10–15 µm). We manufacture to DIN EN 12020-2. The anodising gives a corrosion-resistant finish and a clean look that holds up in industrial environments. The BSB profile system is fully Bosch Rexroth compatible – every corner connector, T-slot nut and hammer-head bolt from the 20 series fits straight away.
At Bendur we cut all your profiles to size in our own saw shop in Someren. Profiles are cut burr-free as standard, so they are pleasant to handle and assemble. For a small surcharge we also take care of tapping, drilling and milling – add the specs to your order or ask for a quote for custom work.
Compatible with the Bosch Rexroth system: same size and slot as Bosch Rexroth 20x40 (ref. 3 842 992 891).
Applications
- Beam or rail in a frame
- Workbench frame
- Cross member under a shelf
- Material trolley
- Shelving or rack frame
Matching parts: corner connectors, cube connectors, T-slot nuts slot 6, hammer-head nuts, end caps, slot cover profiles
- Slot 6 mm – Bosch Rexroth compatible
- Core hole for an M6 internal thread
- Burr-free cut
- Alloy EN AW-6063 T6 to DIN EN 573
- Anodised E6 C0 (natural, 10–15 µm), corrosion-resistant
- Manufactured to DIN EN 12020-2
- Cut to size (20–3000 mm)
Downloads
CAD files and documentation — download directly, no registration required.
Machining
Our in-house workshop handles most machining in one go — so the profile arrives ready for assembly.
Custom cutting
Lengths from 20 to 3,000 mm, step 0.1 mm. Length tolerance ±0.2 mm per DIN 12020-2. Deburred as standard.
Tapping
Threading on 1 or 2 end faces. Ready for further assembly.
Custom drilled holes
Positions and diameters via drawing or CAD. Through-bore or blind up to 30 mm.
Milling
T-slot cutouts, cable routing, custom blocks. Quote on request.
