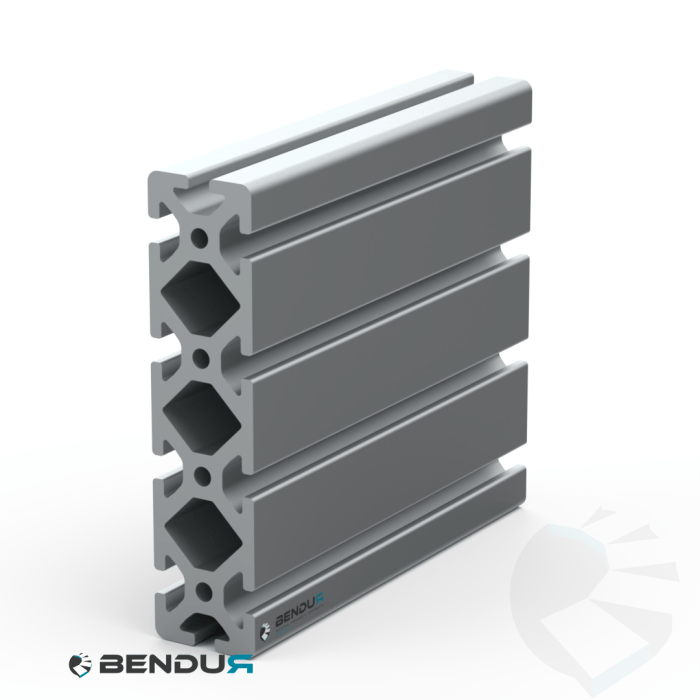

Aluminium profile slot 8 | 160x40 - ISB
SKU BT-010102.08.00.301
Profile system: ISB
Slot type: 8
This aluminum ISB construction profile with 10 slots of 8 mm wide is fully compatible with the 40 series aluminum profiles from ITEM. With this profile it is possible to easily realize constructions. The mounting slots in the extrusion profile make it possible to make a connection quickly, without machining.
€102.03
€84.32
More Information
| Profile system | ISB |
|---|---|
| Slot type | 8 |
| Material | Aluminium |
| Standard length [mm] | 6060 |
| Width [mm] | 160 |
| Height [mm] | 40 |
| Finish | Anodized |
| Color | Natural |
| HS-code | 7604.29.90.90 |
| Core Count | 4 |
| Thread diameter [mm] | M8 |
Technical Information
| Alloy | EN AW 6060 - T6 |
|---|---|
| Layer thickness [μm] | ± 10 |
| Profile surface [cm²] | 32.00 |
| Moment of inertia Ix [cm⁴] | 52.70 |
| Moment of inertia Iy [cm⁴] | 739.60 |
| Section modulus Wx [cm³] | 26.40 |
| Section modulus Wy [cm³] | 92.50 |
| Torsion index It [cm⁴] | 51.34 |
| Weight [kg/m] | 8.60 |
Description
This aluminum ISB construction profile with 10 slots of 8 mm wide is fully compatible with the 40 series aluminum profiles from ITEM. With this profile it is possible to easily realize constructions. The mounting slots in the extrusion profile make it possible to make a connection quickly, without machining.
