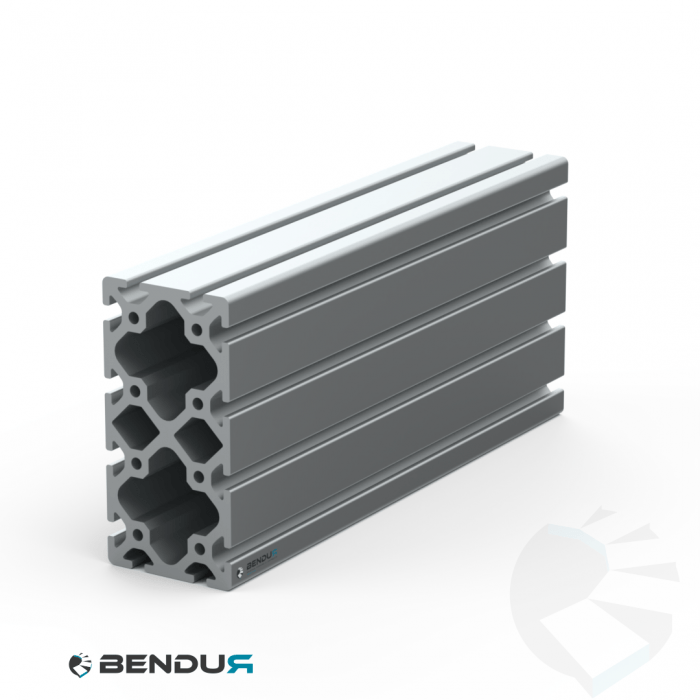

Aluminium profile slot 8 | 160x80 - ISB

SKU BT-010102.08.00.304
Profile system: ISB
Slot type: 8
This aluminium ISB construction profile with 12 8mm wide slots is fully compatible with ITEM's 40-series aluminium profiles. This profile makes it possible to easily create structures. Thanks to the mounting slots in the extruded profile, a connection can be made quickly without machining.

Fill in a value between 20 and 6000 or the standard length 6060 mm

Saw costs
When selecting a length other than the standard length an additional charge of €1.90 excluding tax is included in the price.

€150.59
€182.21
In stock. Delivery time 3 to 5 business days (NL/BE)
Talk to a human?

Call us during office hours.

Our team
More Information Technical Information Description

More Information

Profile system ISB
Slot type 8
Material Aluminium
Standard length [mm] 6060
Width [mm] 160
Height [mm] 80
Finish Anodized
Color Natural
HS-code 7604.29.90.90
Core Count 8
Thread diameter [mm] M8

Technical Information

Alloy EN AW 6060 - T6
Layer thickness [μm] ± 10
Profile surface [cm²] 50.10
Moment of inertia Ix [cm⁴] 360.90
Moment of inertia Iy [cm⁴] 1,228.30
Section modulus Wx [cm³] 90.20
Section modulus Wy [cm³] 153.50
Torsion index It [cm⁴] 398.58
Weight [kg/m] 13.50

Description

This aluminium ISB construction profile with 12 8mm wide slots is fully compatible with ITEM's 40-series aluminium profiles. This profile makes it possible to easily create structures. Thanks to the mounting slots in the extruded profile, a connection can be made quickly without machining.
