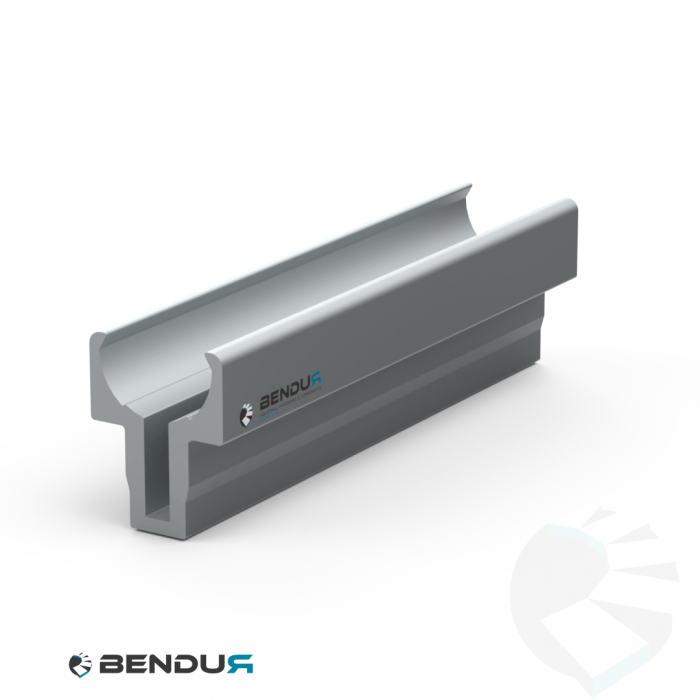

Aluminium shaft-clamp profile slot 8 | D14 - ISB
Product details
- Profile system
- ISB
- Slot type
- 8
- Material
- Aluminium
- Standard length [mm]
- 3060
- Width [mm]
- 18
- Height [mm]
- 22
- Finish
- Anodized
- Color
- Natural
- HS-code
- 7604.29.90.90
- Core Count
- 0
Specifications
- Alloy
- EN AW 6063 - T6
- Layer thickness [μm]
- 10 - 15
- Profile surface [cm²]
- 1.40
- Weight [kg/m]
- 0.40
Description
Applications
- Clamping a panel or mesh in a guard
- Partition wall with thin sheet
- Cabinet with panels
- Noise screen
Matching parts: corner connectors, automatic/T-matic connectors, T-slot nuts slot 8, end caps, slot cover profiles
Downloads
CAD files and documentation — download directly, no registration required.
Machining
Our in-house workshop handles most machining in one go — so the profile arrives ready for assembly.
Custom cutting
Lengths from 20 to 3,000 mm, step 0.1 mm. Length tolerance ±0.2 mm per DIN 12020-2. Deburred as standard.
Tapping
Threading on 1 or 2 end faces. Ready for further assembly.
Custom drilled holes
Positions and diameters via drawing or CAD. Through-bore or blind up to 30 mm.
Milling
T-slot cutouts, cable routing, custom blocks. Quote on request.
