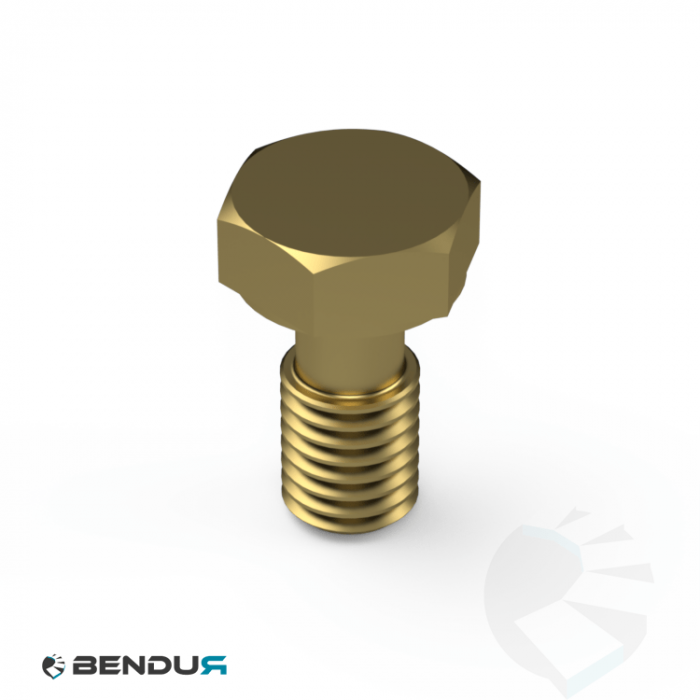

ConveyorBricks Hexagon head screw yps - anti-loss | M8x16 - rejuvenated
SKU BT-060501.90.02.816
This yellow zinc-plated steel (GVS) M8x16 hexagon socket head cap screw, equipped with an anti-loss feature, is designed to remain attached to the component when loosened, in accordance with the standard, when used with the correct washer, preventing loss. Perfect for various applications where retaining fasteners is crucial.
€0.30
€0.36
Tip:
(calculated in the checkout)
More Information
| Standards | ≈ DIN 933 |
|---|
Technical Information
| Diameter | M8 |
|---|---|
| Thread diameter [mm] | M8 |
| Thread length [mm] | 16 |
| Thread direction | Right |
| Class | 8.80 |
| Material | Steel |
| Finish | Yellow plated |
| Weight [grams] | 10.75 |
Product Dimensions
| b | 6.50 |
|---|---|
| d | M8 |
| k | 5.30 |
| L | 16 |
| P | 1.25 |
| s | 13 |
Description
This yellow zinc-plated steel (GVS) M8x16 hexagon socket head cap screw, equipped with an anti-loss feature, is designed to remain attached to the component when loosened, in accordance with the standard, when used with the correct washer, preventing loss. Perfect for various applications where retaining fasteners is crucial.
