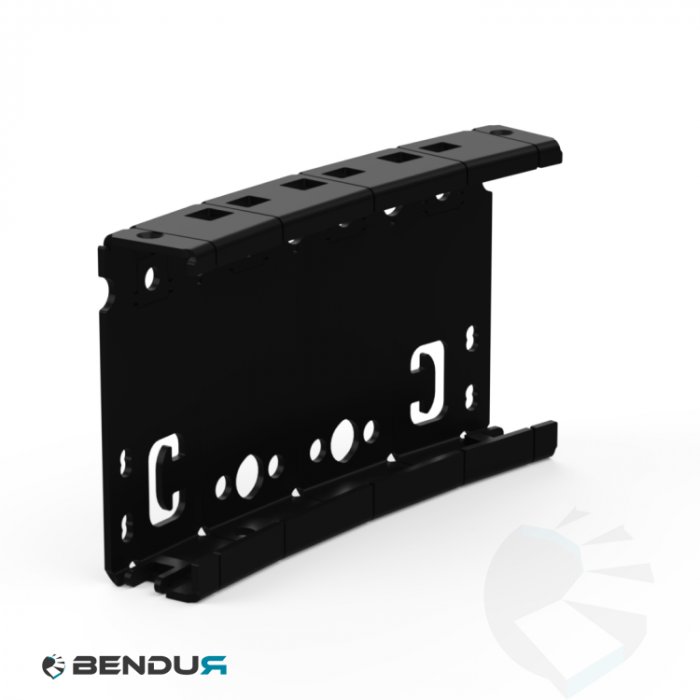

ConveyorBricks Roller curve inside segment 15° | P60 - 620
SKU BT-061201.01.03.620
BF Rated width [mm]: 620
incl. VAT
Product details
- Compatible system
- ConveyorBricks
- Material
- Steel
- Finish
- Powder coated
- Color
- Black
- HS-code
- 7326 90 98
Specifications
- Weight [grams]
- 1,900.40
Product Dimensions
- BF Rated width [mm]
- 620
- LW Conveyor lane width [mm]
- BF (±60 mm per side with flexible side guide)
- α Curve angle [dgr]
- 15°
- Pi Curve roller pitch inside [mm]
- ~54
- P Curve roller pitch outside [mm]
- ~(0.087 x BF) + Pi mm
- HSG Side guide height [mm]
- 62 - 185
Description
The innovative 15° segments from the ConveyorBricks series are specifically designed to create smooth and precise curves in roller conveyor systems. By assembling multiple segments in sequence, you can effortlessly configure curves of 30°, 45°, 60°, 75°, or 90°, perfectly tailored to meet the specific needs of your project. This inside curve segment is engineered for a rated width (BF) of 620 mm and a roller pitch of 60 mm (P60). When paired with tapered rollers from your preferred supplier, it allows you to construct high-quality and reliable curves with ease.
Downloads
CAD files and documentation — download directly, no registration required.
