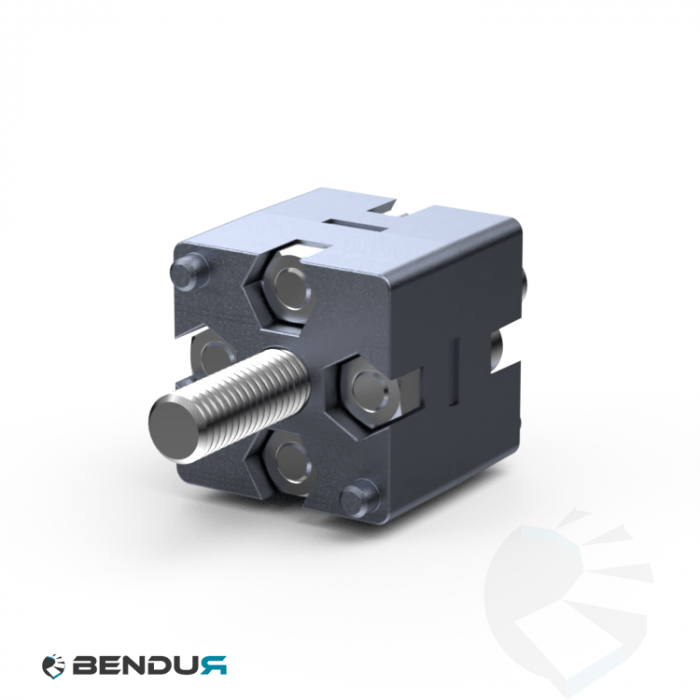

End-connector BSB + assembly set - slot 8 | 30x30
Product details
- Profile system
- BSB
- Slot type
- 8
- Material
- Aluminium die-cast
- HS-code
- 7616.99.10.99
Specifications
- Weight [grams]
- 92
Description
This end connector set joins two BSB profiles 30x30 with slot 8 of the same type end to end, in line. You fit one die-cast plate on each profile end and bolt the two plates together with the supplied screws and nuts.
- Material: aluminium die-cast, plain, alu colour; screws and nuts steel, zinc plated
- Set contents: 2 plate connectors, 2 screws M8 x 30 and 4 screws M5 x 20 (DIN 7984), 4 hex nuts M5
- For BSB profiles 30x30, slot 8
How to mount a T-connector
Example: BSB T-connector 45x45 for slot 10: the end of one profile at right angles to the side of the other, no drilling, with a central screw, two socket head screws and two hammer nuts.
-
Step 1: Put two bolts in the T-connector. Screw it onto the profile end with the central screw; no tapping needed.
-
Step 2: Turn a hammer nut a few turns onto the bottom of both screws, both facing the same way.
-
Step 3: Place the profile with the connector on the other profile. The hammer nuts drop lengthwise into the slot.
-
Step 4: Tighten both screws; you reach the heads through the slot. The hammer nuts turn across and clamp in the slot.
