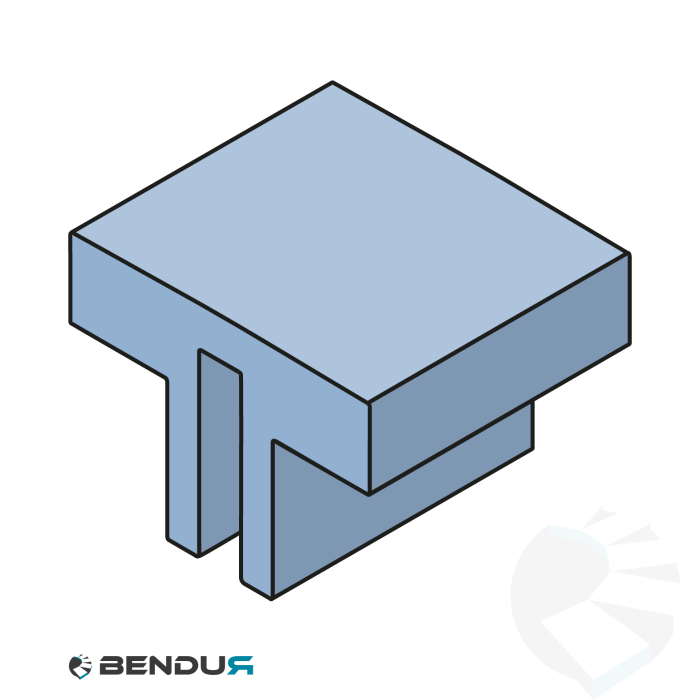

Extruded plastic bar cap profile | 34,5x25,1 blue BluLub | l=6m
SKU BT-060302.08.09.002
incl. VAT
Product details
- Product series
- BAR CAP
- Material
- BluLub
- Color
- Blue
- Standard length [mm]
- 6000
- Width [mm]
- 34.50
- Height [mm]
- 25.10
- Lower width [mm]
- 12.20
- Material thickness [mm]
- 4.30
- Wall thickness below
- 3.70
- Plate thickness
- 5
Specifications
- Weight [KG]
- 2.08
Description
This profile for flat steel, made of plastic (BluLub) in the color blue, is used in conveyor belts for shielding or supporting chains and mats, has a width of 34.5 mm and a height of 25.1 mm, and is supplied in a length of 6 meters.
Downloads
CAD files and documentation — download directly, no registration required.
