Extruded plastic C-profile | 50x16,5 blue BluLub with nose | l=3m
SKU BT-060302.06.07.001
incl. VAT
Product details
- Product series
- C-PROFILE
- With nose
- Yes
- Material
- BluLub
- Color
- Blue
- Standard length [mm]
- 3000
- Width [mm]
- 50
- Height [mm]
- 16.50
- Material thickness [mm]
- 3
- Wall thickness below
- 4
- Nose thickness [mm]
- 8
- Bars beam size
- 40 x 8
Specifications
- Weight [KG]
- 0.82
Description

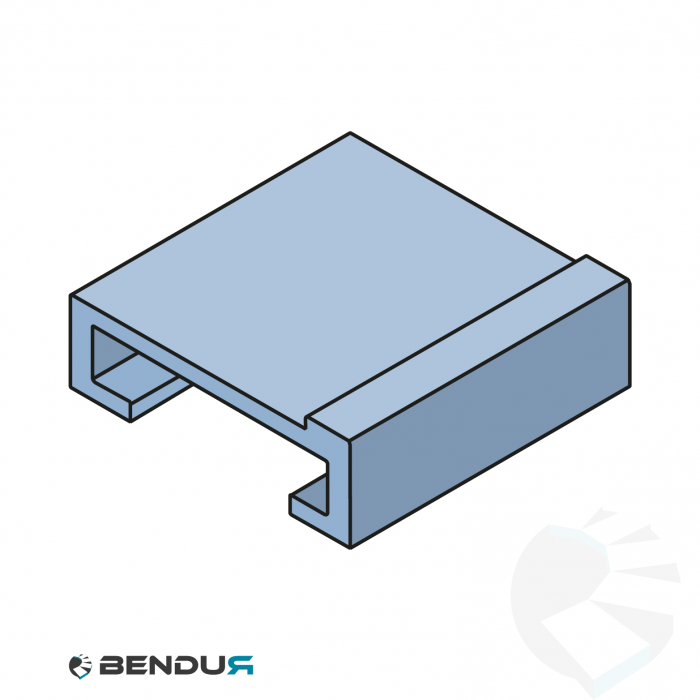

This C-profile made of plastic (BluLub) in the color blue is used in conveyor belts to support chains and mats, has a width of 50 mm and a height of 16.5 mm, and is supplied in a length of 3 meters.
Downloads
CAD files and documentation — download directly, no registration required.
