Extruded plastic clip-on C-profile | 45,5x15 Ti-white with nose | l=6m
SKU BT-060302.06.04.102
incl. VAT
Product details
- Product series
- C-PROFILE
- With nose
- Yes
- Clip-on version
- Yes
- Material
- Ti-White
- Color
- White
- Standard length [mm]
- 6000
- Width [mm]
- 45.50
- Height [mm]
- 15
- Material thickness [mm]
- 5.10
- Wall thickness below
- 3.20
- Nose thickness [mm]
- 3.30
- Bars beam size
- 38.1 x 6.35
Specifications
- Weight [KG]
- 2.52
Description

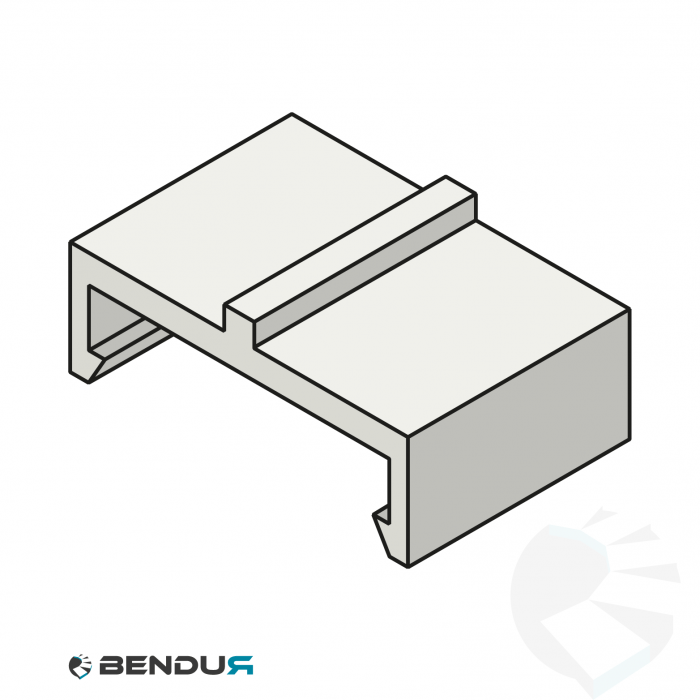

This snap-on C-profile made of plastic (Ti-White) in the color white is used in conveyor belts to support chains and mats, has a width of 45.5 mm and a height of 15 mm, and is supplied in a length of 6 meters.
Downloads
CAD files and documentation — download directly, no registration required.
