Extruded plastic clip-on U-profile | 43x13 blue BluLub with nose | l=30m
SKU BT-060302.05.01.003
incl. VAT
Product details
- Product series
- U-PROFILE
- With nose
- Yes
- Clip-on version
- Yes
- Material
- BluLub
- Color
- Blue
- Standard length [mm]
- 30000
- Width [mm]
- 43
- Height [mm]
- 13
- Material thickness [mm]
- 4
- Wall thickness below
- 6.50
- Nose thickness [mm]
- 3
Specifications
- Weight [KG]
- 7.87
Description

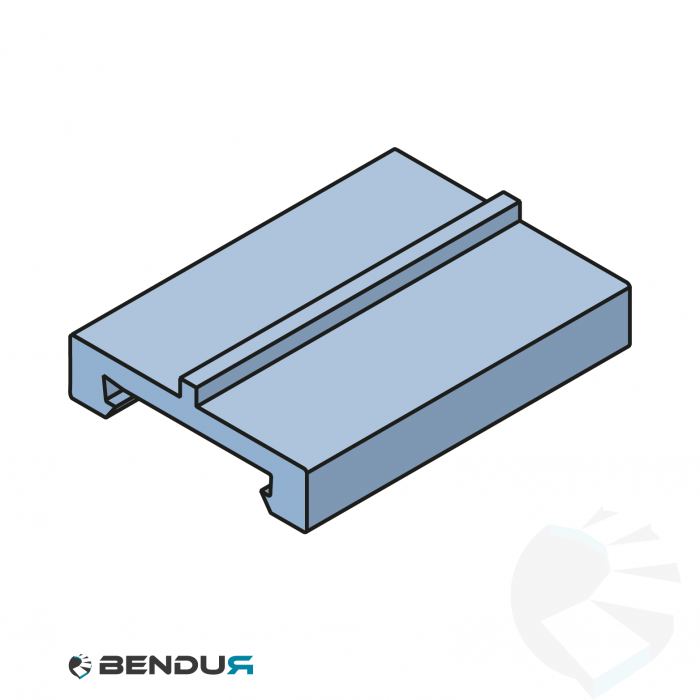

This snap-on U-profile made of plastic (BluLub) in the color blue is used in conveyor belts to support chains and mats, has a width of 43mm and a height of 13mm, and is supplied in a length of 30 meters.
