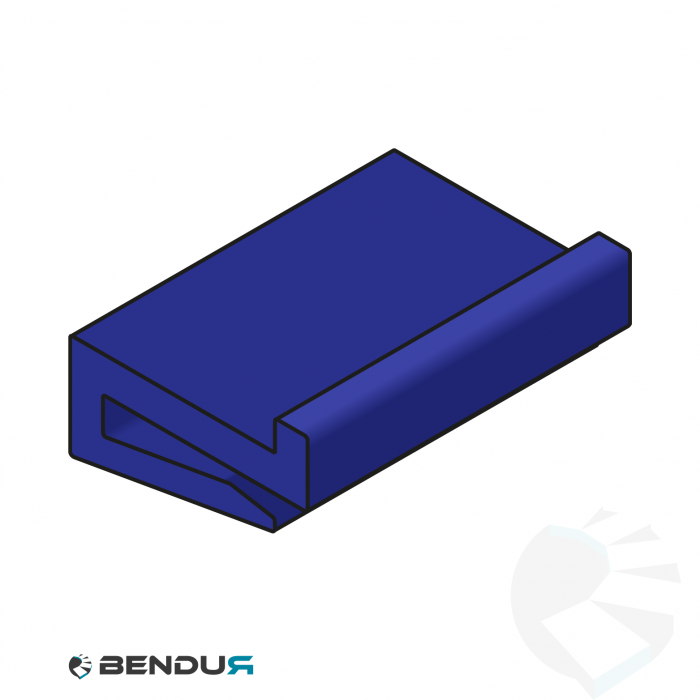

Extruded plastic J-profile | 22,1x12,8 blue UHMW-PE with nose | l=30m
SKU BT-060302.04.03.203
This blue J-profile made of plastic (UHMW-PE) is used in conveyor belts to support chains and mats, has a width of 22.
€193.00
€233.53
Tip:
(calculated in the checkout)
More Information
| Product series | J-PROFILE |
|---|---|
| With nose | Yes |
| Material | UHMW-PE |
| Color | Blue |
| Standard length [mm] | 30000 |
| Width [mm] | 22.10 |
| Height [mm] | 12.80 |
| Lower width [mm] | 18.60 |
| Material thickness [mm] | 3.20 |
| Wall thickness below | 3 |
| Nose thickness [mm] | 3 |
| Plate thickness | 3 |
Technical Information
| Weight [KG] | 3.73 |
|---|
Description
This blue J-profile made of plastic (UHMW-PE) is used in conveyor belts to support chains and mats, has a width of 22.1 mm and a height of 12.8 mm, and is supplied in a length of 30 meters.
