Extruded plastic side guide profile | 19x120 grey UHMW-PE with label saver | l=3m
SKU BT-060302.09.13.204

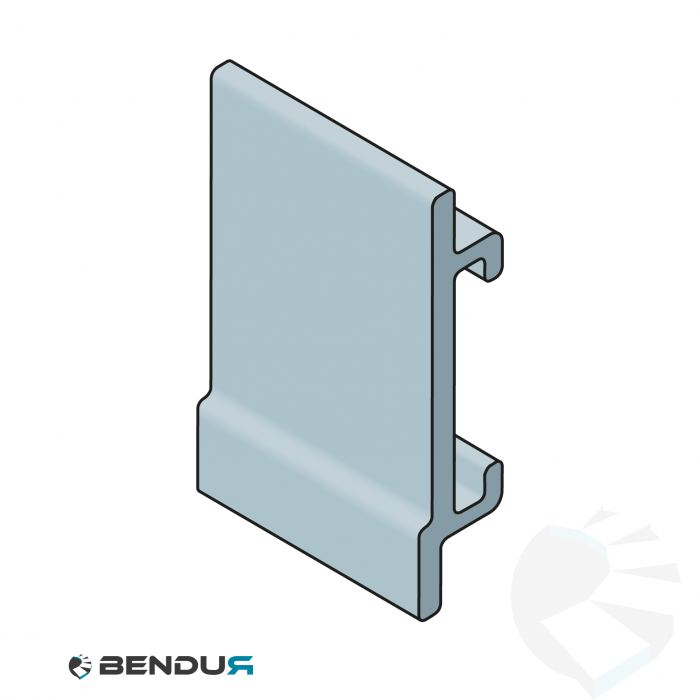

This side guide profile made of plastic (UHMW-PE) in gray with label recess is designed for use on conveyor belts. It is used in combination with a flat strip as a side guide profile and offers a specific space for labels, has a width of 19mm and a height of 120mm and is supplied in a length of 3 meters.
€77.53
€93.81
More Information
| Product series | SIDE GUIDE RAIL USED WITH PLATE |
|---|---|
| With labelsaver | Yes |
| Material | UHMW-PE |
| Color | Grey |
| Standard length [mm] | 3000 |
| Width [mm] | 19 |
| Height [mm] | 120 |
| Center to center | 60 |
| Height label saver [mm] | 20 |
| Material thickness [mm] | 3 |
| Bars beam size | 50 x 6 |
Description
This side guide profile made of plastic (UHMW-PE) in gray with label recess is designed for use on conveyor belts. It is used in combination with a flat strip as a side guide profile and offers a specific space for labels, has a width of 19mm and a height of 120mm and is supplied in a length of 3 meters.
