Extruded plastic side guide profile | 21x136 blue BluLub with label saver | l=3m
SKU BT-060302.09.16.001
incl. VAT
Product details
- Product series
- SIDE GUIDE RAIL USED WITH PLATE
- With labelsaver
- Yes
- Material
- BluLub
- Color
- Blue
- Standard length [mm]
- 3000
- Width [mm]
- 21
- Height [mm]
- 136
- Center to center
- 39
- Height label saver [mm]
- 40
- Material thickness [mm]
- 3
- Bars beam size
- 40 x 8
Specifications
- Weight [KG]
- 3.66
Description

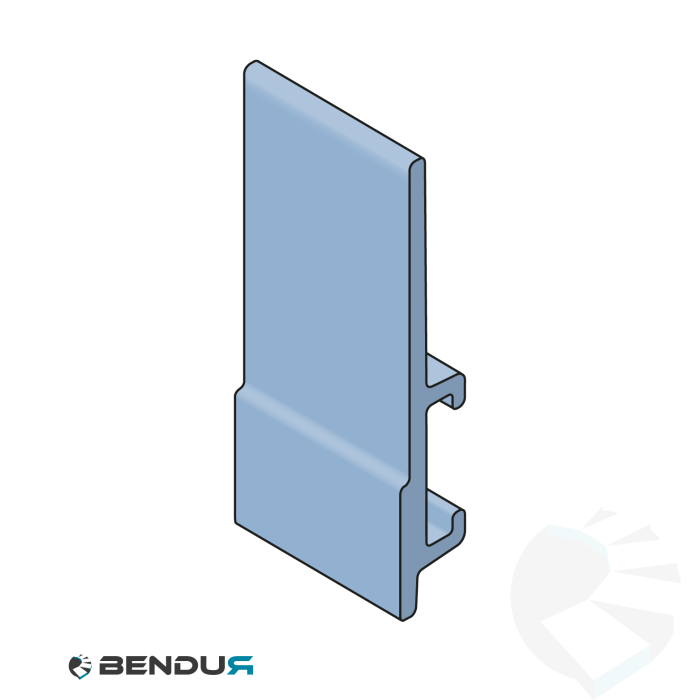

This side guide profile made of plastic (BluLub) in the color blue is used in combination with a flat strip as a side guide profile and offers a specific space for labels, has a width of 21mm and a height of 136mm, and is supplied in a length of 3 meters.
Downloads
CAD files and documentation — download directly, no registration required.
