Hammer head screw BSB - slot 8 | 1.5 - M6x20
Product details
- Profile system
- BSB
- Slot type
- 8
- Material
- Steel
- Thread diameter [mm]
- M6
- Finish
- Zinc plated
- HS-code
- 7318.15.95.89
Specifications
- Weight [grams]
- 7
Description

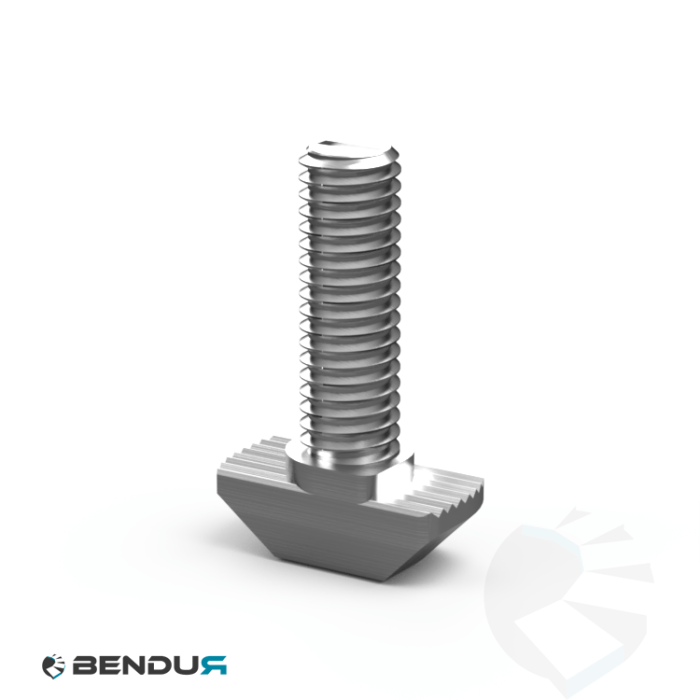

This hammer head screw M6x20 fastens parts directly to a BSB profile with slot 8: the head sits in the slot and the threaded end sticks out. You tighten it with a flange nut.
When you tighten the nut, the head bites through the anodised layer of the profile. That gives a secure connection that also conducts electricity (ESD).
- Thread x length: M6x20 mm
- Collar height: 1.5 mm
- Material: zinc-plated steel
- Fits BSB profiles with slot 8
How to mount a hammer head screw
Example: Hammer head screw M8 with flange nut in a BSB profile 40x40 slot 10: you can put it anywhere in the slot, even when the profile is already fixed.
-
Step 1: Turn the hammer head in line with the slot and drop it into the slot from the front.
-
Step 2: Put the part over the screw and turn the flange nut on a few turns.
-
Step 3: Tighten the nut. The hammer head turns across and clamps behind the edges of the slot.
Compare variants
Not sure which variant fits best? Compare the 6 × 20 mm variants of BSB slot 8.
