Zinc die-cast corner connector ISB + assembly set - slot 8 | 80x160
Product details
- Profile system
- ISB
- Slot type
- 8
- Material
- Zinc die-cast
- HS-code
- 7907.00.00.90
Description

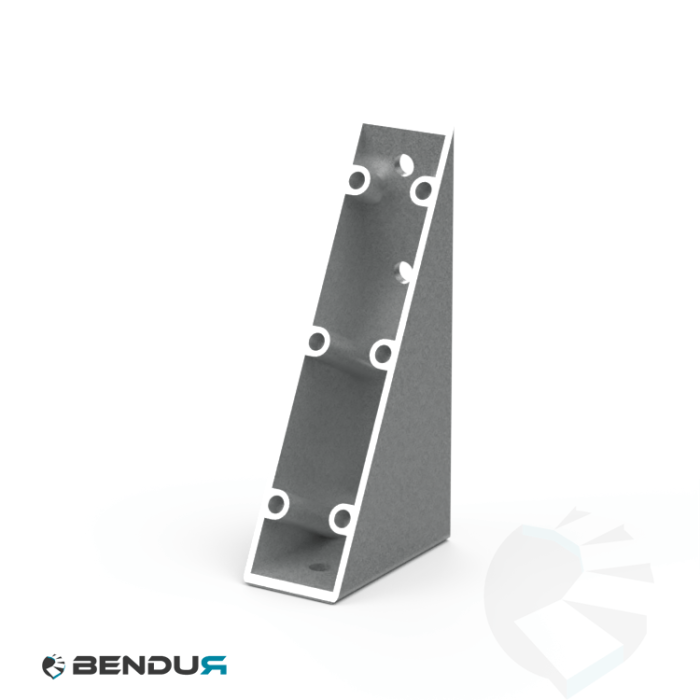

This large die-cast corner connector joins two ISB profiles at a right angle, for heavy joints with profiles 80x160. You can also use it to fix a panel to a profile. It is made for slot 8.
Everything you need comes in the set: the fasteners and a cover cap that closes the open side.
- Surface: powder coated in alu colour
- For ISB profiles 80x160, slot 8
- Set: 1 corner connector, 1 black plastic (PA) cover cap, 4 T-slot nuts for slot 8, M8, 4 button head screws ISO 7380, M8 x 16, and 4 square washers
- Screws and T-slot nuts: zinc plated steel
How to mount a zinc corner connector
Example: ISB zinc corner bracket 40 with swivel-in slot nuts, square washers and button head screws, on two 40x40 slot 8 profiles.
-
Step 1: In both profiles, put a slot nut into the slot at an angle from the front, where the bracket goes, and turn it a quarter turn. The spring-loaded ball holds it in place.
-
Step 2: Put the connector in the corner and push the screws through it into the nuts.
-
Step 3: Tighten both screws with a hex key.
-
Step 4: Optional: click a cover cap onto the corner connector. It is sold separately.
View the matching cover cap
Compare variants
Not sure which variant fits best? Compare the 80 × 160 mm variants of ISB slot 8.
