Zinc die-cast corner connector ISB + assembly set - slot 8 | 80x80
Product details
- Profile system
- ISB
- Slot type
- 8
- Material
- Zinc die-cast
- HS-code
- 7907.00.00.90
Description
This die-cast zinc corner connector joins two ISB profiles 80x80 at a right angle. It is made for slot 8.
You need no machining on the profiles: the swivel-in T-slot nuts from the set lock in the slots. The open side can be closed with a black plastic cover cap, sold separately.
- Material: die-cast zinc, powder coated in alu colour (similar to RAL 9006)
- For ISB profiles 80x80, slot 8
- Assembly set: 8 swivel-in T-slot nuts for slot 8, M8, 8 button head screws ISO 7380, M8 x 18 and 8 washers DIN 125, Ø8.4 mm, zinc plated steel
- No profile machining needed
How to mount a corner bracket 80x80 (ISB)

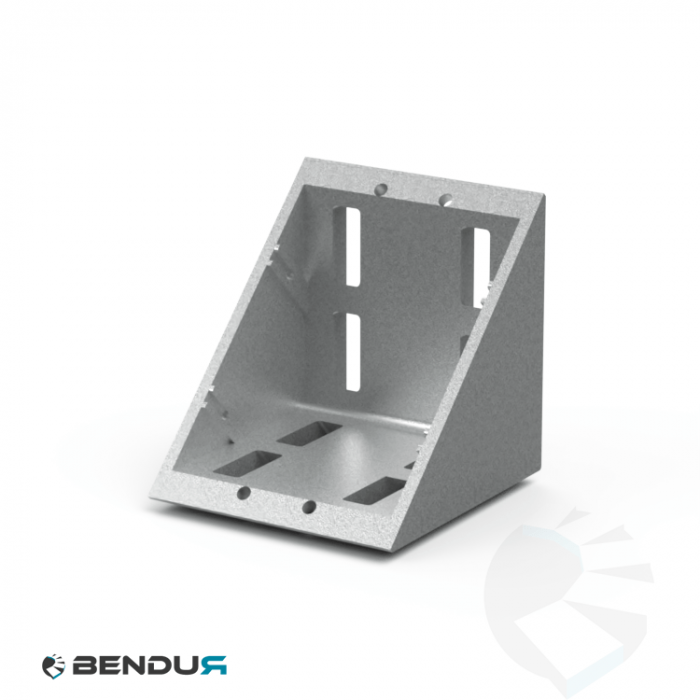

ISB zinc corner bracket 80x80 with eight swivel-in slot nuts, washers and button head screws, on two 80x80 slot 8 profiles.
-
Step 1: In both profiles, put the slot nuts into the slot at an angle from the front, where the bracket goes, and turn them a quarter turn. The spring-loaded ball holds them in place.
-
Step 2: Place the bracket in the corner and push the screws through it into the nuts.
-
Step 3: Tighten all screws with a hex key.
-
Step 4: Optional: click a cover cap onto the corner bracket. It is sold separately.
View the matching cover cap
Compare variants
Not sure which variant fits best? Compare the 80 × 80 mm variants of ISB slot 8.
