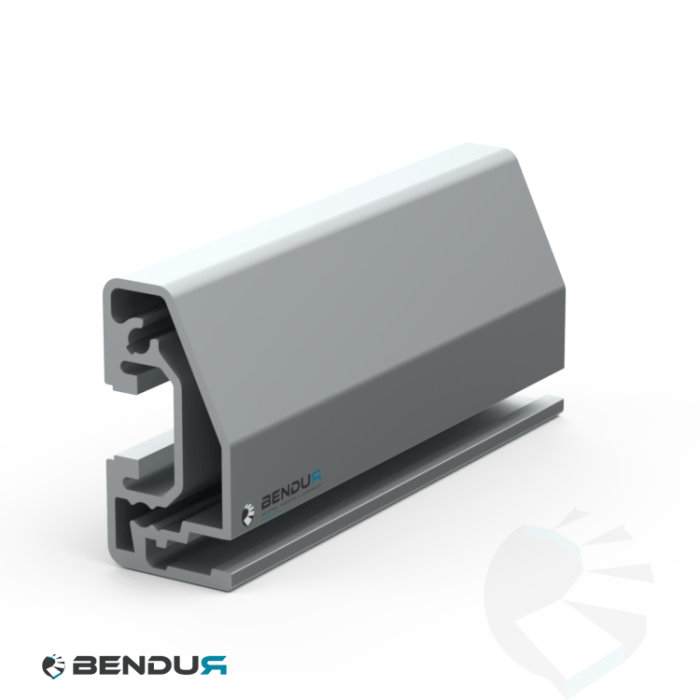

Aluminium frame profile 10 | 22.5X45 - BSB
Product details
- Profile system
- BSB
- Slot type
- 10
- Material
- Aluminium
- Standard length [mm]
- 6060
- Width [mm]
- 22.50
- Height [mm]
- 45
- Finish
- Anodized
- Color
- Natural
- HS-code
- 7604.29.90.90
- Core Count
- 0
Specifications
- Alloy
- EN AW 6063 - T6
- Layer thickness [μm]
- 10 - 15
- Profile surface [cm²]
- 3.40
- Moment of inertia Ix [cm⁴]
- 6.70
- Moment of inertia Iy [cm⁴]
- 1.70
- Section modulus Wx [cm³]
- 2.80
- Section modulus Wy [cm³]
- 1.30
- Weight [kg/m]
- 0.90
Description
Compatible with the Bosch Rexroth system: same size and slot as Bosch Rexroth frame profile 22.5x45.
Applications
- Trim or edge of a panel
- Door frame or slim frame
- Guide or end stop
- Handle strip
- Mounting plate with slot
Matching parts: corner connectors, cube connectors, T-slot nuts slot 10, hammer-head nuts, end caps, slot cover profiles
Goes with this
Customers who order this product usually buy these products too. Save on shipping costs and a second delivery time.
Compare variants
Not sure which variant fits best? Compare the 22 × 45 mm variants of BSB slot 10.
Downloads
CAD files and documentation — download directly, no registration required.
Machining
Our in-house workshop handles most machining in one go — so the profile arrives ready for assembly.
Custom cutting
Lengths from 20 to 6,000 mm, step 0.1 mm. Length tolerance ±0.2 mm per DIN 12020-2. Deburred as standard.
Tapping
Threading on 1 or 2 end faces. Ready for further assembly.
Custom drilled holes
Positions and diameters via drawing or CAD. Through-bore or blind up to 30 mm.
Milling
T-slot cutouts, cable routing, custom blocks. Quote on request.
