Aluminium profile slot 10 | 22,5x45 - Flat - BSB
Product details
- Profile system
- BSB
- Slot type
- 10
- Material
- Aluminium
- Standard length [mm]
- 6060
- Width [mm]
- 22.50
- Height [mm]
- 45
- Finish
- Anodized
- Color
- Natural
- HS-code
- 7604.29.90.90
- Core Count
- 1
- Thread diameter [mm]
- M12
Specifications
- Alloy
- EN AW 6063 - T6
- Layer thickness [μm]
- 10 - 15
- Profile surface [cm²]
- 4.70
- Moment of inertia Ix [cm⁴]
- 7.10
- Moment of inertia Iy [cm⁴]
- 2.90
- Section modulus Wx [cm³]
- 3.20
- Section modulus Wy [cm³]
- 2.60
- Weight [kg/m]
- 1.30
Description

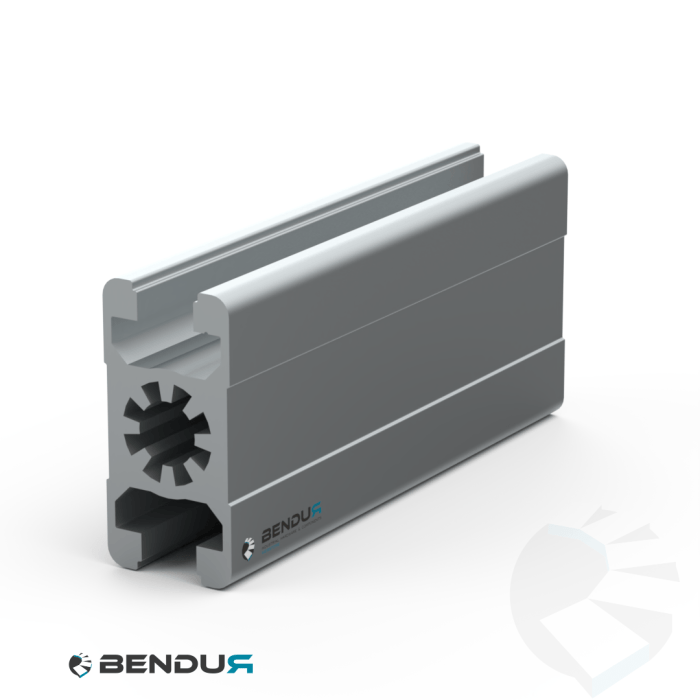

The BSB aluminium construction profile 22.5×45 mm, slot 10 is a versatile profile with 2 open 10 mm T-slots. The open slots let you make connections in no time – from machine frames to transport carts – without machining the profile itself. The core holes take an M12 internal thread, ideal for mounting levelling feet and connecting plates or for joining two profiles.
The profile is extruded from EN AW-6063 T6 aluminium to DIN EN 573 and anodised natural as standard (E6 C0, layer thickness 10–15 µm). We manufacture to DIN EN 12020-2. The anodising gives a corrosion-resistant finish and a clean look that holds up in industrial environments. The BSB profile system is fully Bosch Rexroth compatible – every corner connector, T-slot nut and hammer-head bolt from the 45 series fits straight away.
At Bendur we cut all your profiles to size in our own saw shop in Someren. Profiles are cut burr-free as standard, so they are pleasant to handle and assemble. For a small surcharge we also take care of tapping, drilling and milling – add the specs to your order or ask for a quote for custom work.
Compatible with the Bosch Rexroth system: same size and slot as Bosch Rexroth 22.5x45 (ref. 3 842 990 292).
Applications
- Trim or edge of a panel
- Door frame or slim frame
- Guide or end stop
- Handle strip
- Mounting plate with slot
Matching parts: corner connectors, cube connectors, T-slot nuts slot 10, hammer-head nuts, end caps, slot cover profiles
- Slot 10 mm – Bosch Rexroth compatible
- Core hole for an M12 internal thread
- Burr-free cut
- Alloy EN AW-6063 T6 to DIN EN 573
- Anodised E6 C0 (natural, 10–15 µm), corrosion-resistant
- Manufactured to DIN EN 12020-2
- Cut to size (20–6000 mm)
