  • Profiles cut to size

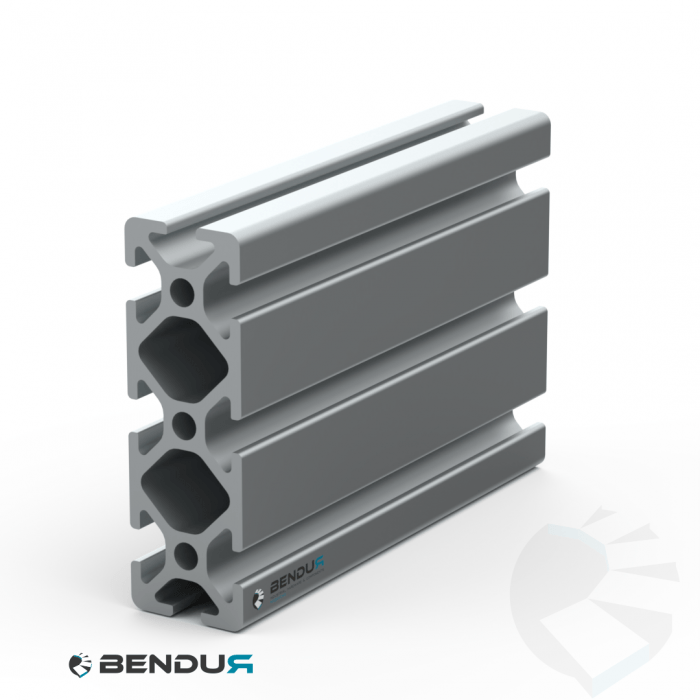

Aluminium profile slot 5 | 60x20 - ISB

SKU BT-010102.05.00.200
Profile system: ISB
Slot type: 5
This aluminum ISB structural profile with eight 5mm wide slots is fully compatible with ITEM's 20-series aluminum profiles. This profile allows for easy construction. The mounting slots in the extrusion profile allow for quick, non-machining connections.

Fill in a value between 20 and 3000 or the standard length 3060 mm

Saw costs
When selecting a length other than the standard length an additional charge of €1.90 excluding tax is included in the price.

€16.97
€20.53
In stock. Delivery time 3 to 5 business days (NL/BE)
Talk to a human?

Call us during office hours.

Our team
More Information Technical Information Description

More Information

Profile system ISB
Slot type 5
Material Aluminium
Standard length [mm] 3060
Width [mm] 60
Height [mm] 20
Finish Anodized
Color Natural
HS-code 7604.29.90.90
Core Count 3
Thread diameter [mm] M5

Technical Information

Alloy EN AW 6060 - T6
Layer thickness [μm] ± 10
Profile surface [cm²] 4.80
Moment of inertia Ix [cm⁴] 2.10
Moment of inertia Iy [cm⁴] 16.10
Section modulus Wx [cm³] 2.10
Section modulus Wy [cm³] 5.40
Torsion index It [cm⁴] 1.54
Weight [kg/m] 1.30

Description

This aluminum ISB structural profile with eight 5mm wide slots is fully compatible with ITEM's 20-series aluminum profiles. This profile allows for easy construction. The mounting slots in the extrusion profile allow for quick, non-machining connections.
