Connecting strip 180 BSB + assembly set - slot 10 | 4xM8
Product details
- Profile system
- BSB
- Slot type
- 10
- Material
- Steel
- Thread diameter [mm]
- M8
- Finish
- Zinc plated
- HS-code
- 7326.90.98.90
Specifications
- Weight [grams]
- 264
Description

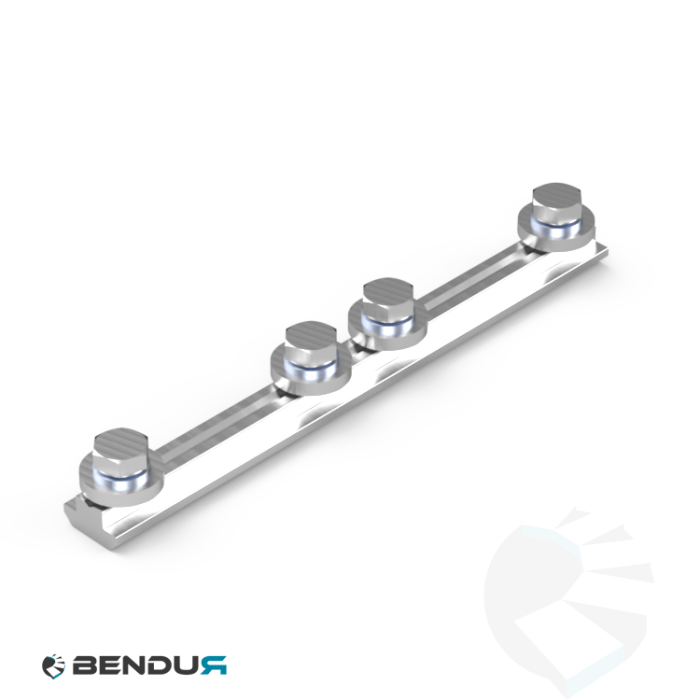

With this connecting strip you join two BSB profiles with slot 10 end to end, without machining. The strip lies in the slots of both profiles and is fixed with four screws.
- Material: steel, zinc plated
- Length: 180 mm, 4 threaded holes M8
- Assembly set: 4 hex bolts M8 x 16 (DIN 933) and 8 washers
- For BSB profiles with slot 10
How to mount a connecting strip
Example: Steel connecting strip 180 with assembly set (4 hex bolts M8x16, each with two washers) on two BSB 40x40 slot 10 profiles, end to end, without machining the profiles.
-
Step 1: Slide the connecting strip from the end face halfway into the slot of the first profile.
-
Step 2: Slide the second profile over the other half, end against end with the first.
-
Step 3: Put the screws with their washers on the slot and tighten them in the strip: two in each profile.
Compare variants
Not sure which variant fits best? Compare the Connecting strip 180 BSB + assembly set - slot 10 | 4xM8 variants of BSB slot 10.
Downloads
CAD files and documentation — download directly, no registration required.
