Inner connector BSB - slot 8 | type 1
Product details
- Profile system
- BSB
- Slot type
- 8
- Material
- Zinc die-cast
- HS-code
- 7325.99.90.90
Specifications
- Weight [grams]
- 27
Description
This inner connector (type 1) joins two BSB profiles with slot 8 without machining. It is fitted in the profile slots and clamped with hexagon socket set screws.
- Material: zinc die-cast, zinc plated
- Set screws: M6, steel, zinc plated
- No drilling or tapping needed
- For BSB profiles with slot 8
How to mount an inner connector (type 1)

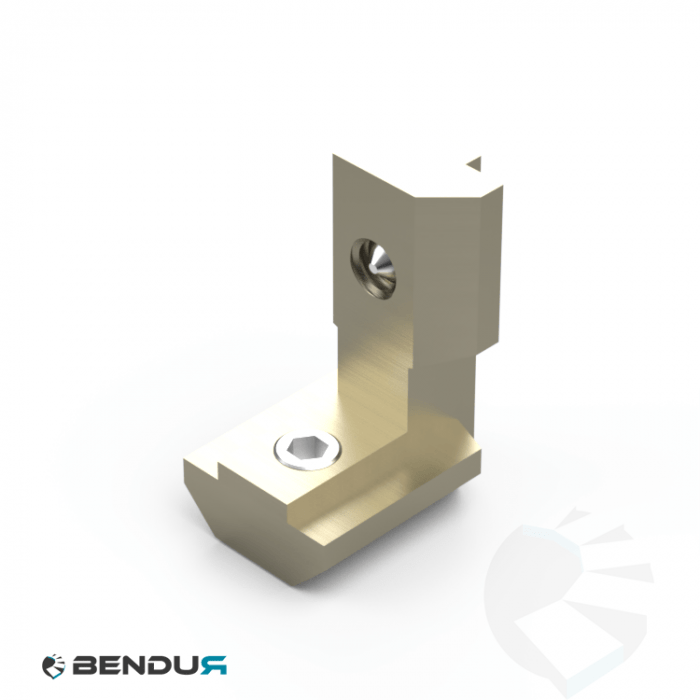

Example: BSB inner connector for slot 8 with two set screws, on a 30x30 profile. The connector sits in the slots, no drilling needed.
-
Step 1: Slide the inner connector into the slot of the upright from the top.
-
Step 2: Set it to height and tighten the set screw in the upright.
-
Step 3: Slide the beam with its slot over the other leg, up against the upright.
-
Step 4: Tighten the second set screw, through the slot of the beam.
Compare variants
Not sure which variant fits best? Compare the Inner connector BSB - slot 8 | type 1 variants of BSB slot 8.
Downloads
CAD files and documentation — download directly, no registration required.
