Leveling foot hygienic certified with overmolded sd baseplate - Ø80 + ar
SKU CP-060702.32.00.101

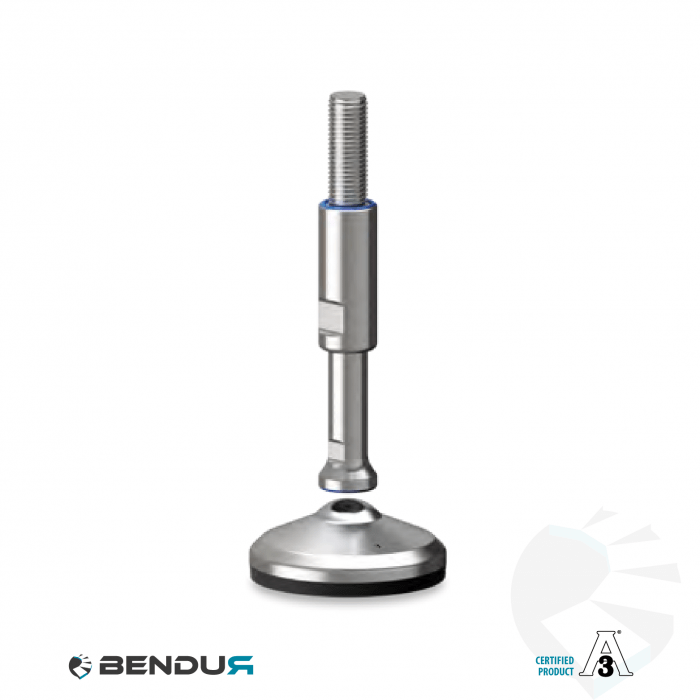

This stainless steel leveling foot with vulcanized anti-slip rubber has a molded base with a diameter of 80mm and a sealed, separated spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 190 to 300mm with a maximum load capacity of 12,000 or 15,000N. It is the ideal choice for industrial environments with critical hygiene requirements, such as those in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel base and its special design guarantee excellent cleanability, especially in critical conditions. The protected spindle provides 100% thread protection and prevents exposure to external agents.
As low as:
€36.64
€44.33
As low as:
Product Information
| Product series | C500 SPLIT |
|---|---|
| Footplate diameter [mm] | 80 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M12 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M12 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M16 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M16 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M20 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M20 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M24 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M24 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
| Product series | C500 SPLIT |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
Description
This stainless steel leveling foot with vulcanized anti-slip rubber has a molded base with a diameter of 80mm and a sealed, separated spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 190 to 300mm with a maximum load capacity of 12,000 or 15,000N. It is the ideal choice for industrial environments with critical hygiene requirements, such as those in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel base and its special design guarantee excellent cleanability, especially in critical conditions. The protected spindle provides 100% thread protection and prevents exposure to external agents.
