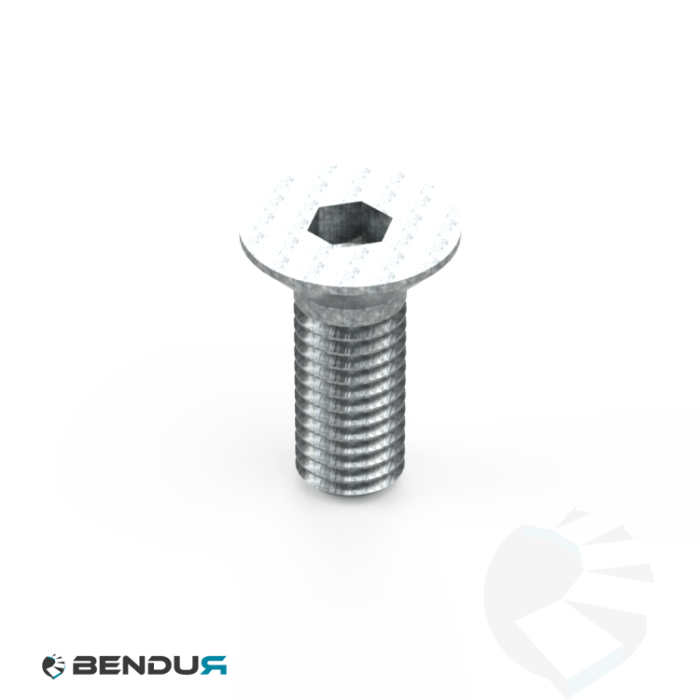

Hexagon socket countersunk head screw zps | M8x16 - DIN 7991
SKU BT-070208.01.05.016
Countersunk socket screw for flush mounting and a clean surface finish.
€0.09
€0.11
Tip:
(calculated in the checkout)
More Information
| Standards | ISO 10642, DIN ≈ 7991 |
|---|---|
| HS-code | 7318.15.68.90 |
Technical Information
| Diameter | M8 |
|---|---|
| Thread diameter [mm] | M8 |
| Thread length [mm] | 16 |
| Thread direction | Right |
| Class | 8.80 |
| Material | Steel |
| Finish | Zinc plated |
| Weight [grams] | 7.49 |
Product Dimensions
| b | 16 |
|---|---|
| d | M8 |
| dk | 16.43 |
| k | 4.96 |
| L | 16 |
| P | 1.25 |
| s | 5 |
| α | 90 |
Description
Countersunk socket screw for flush mounting and a clean surface finish.
