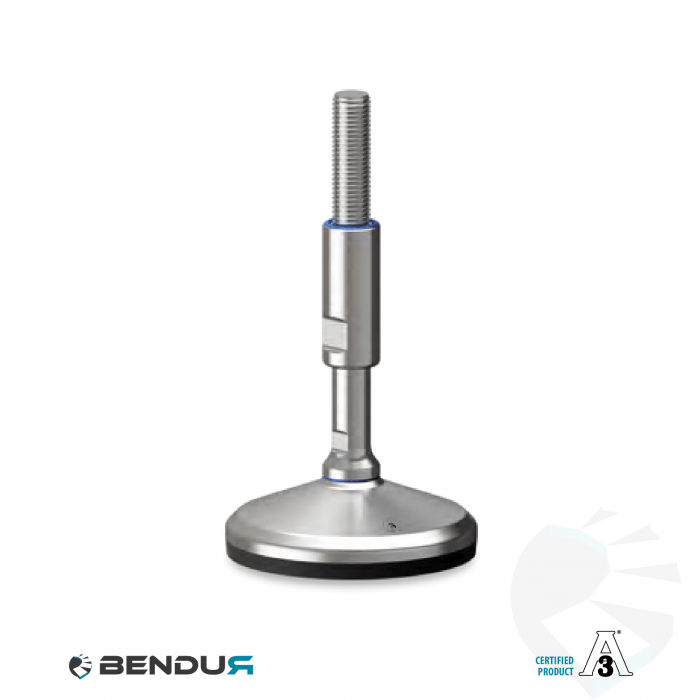

Leveling foot hygienic certified with overmolded sd baseplate - Ø105 + ar
SKU CP-060702.30.00.201
This stainless steel leveling foot with vulcanized anti-slip rubber has a cast foot with a diameter of 105mm and a sealed spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 195 to 305mm with a maximum load capacity of 12,000 or 25,000N. It is the ideal choice for industrial environments with critical hygiene requirements, such as those in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel foot and its special design guarantee excellent cleanability, especially in critical conditions. The protected spindle provides 100% thread protection and prevents exposure to external agents.
As low as:
€44.79
€54.20
As low as:
Product Information
| Product series | C500 |
|---|---|
| Footplate diameter [mm] | 105 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M12 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M12 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M16 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M16 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M20 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M20 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M24 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M24 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M36 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M36 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 105 |
| Thread diameter [mm] | M36 |
Description
This stainless steel leveling foot with vulcanized anti-slip rubber has a cast foot with a diameter of 105mm and a sealed spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 195 to 305mm with a maximum load capacity of 12,000 or 25,000N. It is the ideal choice for industrial environments with critical hygiene requirements, such as those in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel foot and its special design guarantee excellent cleanability, especially in critical conditions. The protected spindle provides 100% thread protection and prevents exposure to external agents.
