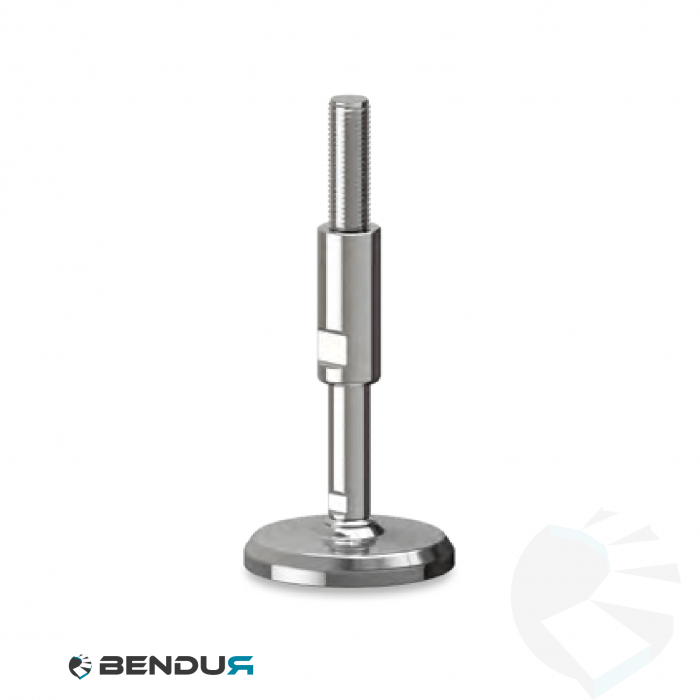

Leveling foot hygienic with machined baseplate - Ø80
SKU CP-060702.23.00.101
This stainless steel leveling foot has a fully machined base with a diameter of 80mm and a sealed M12, M16, M20, M24, M30, or M36 spindle. The total height of this leveling foot ranges from 177.5 to 287.5mm with a maximum load capacity of 12,000, 30,000, 45,000, 70,000, or 80,000N. It is ideally suited for industrial environments requiring a high level of hygiene and heavy loads, such as in the food, chemical, and pharmaceutical industries. The stainless steel base and its special design guarantee high load resistance and excellent cleanability, even in critical conditions. The protected spindle prevents the threaded area from being exposed to external agents.
As low as:
€51.00
€61.71
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | S400B HEAVY |
|---|---|
| Footplate diameter [mm] | 80 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M12 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M12 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M16 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M16 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M20 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M20 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M24 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M24 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M30 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
| Product series | S400B HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 80 |
| Thread diameter [mm] | M36 |
Description
This stainless steel leveling foot has a fully machined base with a diameter of 80mm and a sealed M12, M16, M20, M24, M30, or M36 spindle. The total height of this leveling foot ranges from 177.5 to 287.5mm with a maximum load capacity of 12,000, 30,000, 45,000, 70,000, or 80,000N. It is ideally suited for industrial environments requiring a high level of hygiene and heavy loads, such as in the food, chemical, and pharmaceutical industries. The stainless steel base and its special design guarantee high load resistance and excellent cleanability, even in critical conditions. The protected spindle prevents the threaded area from being exposed to external agents.
