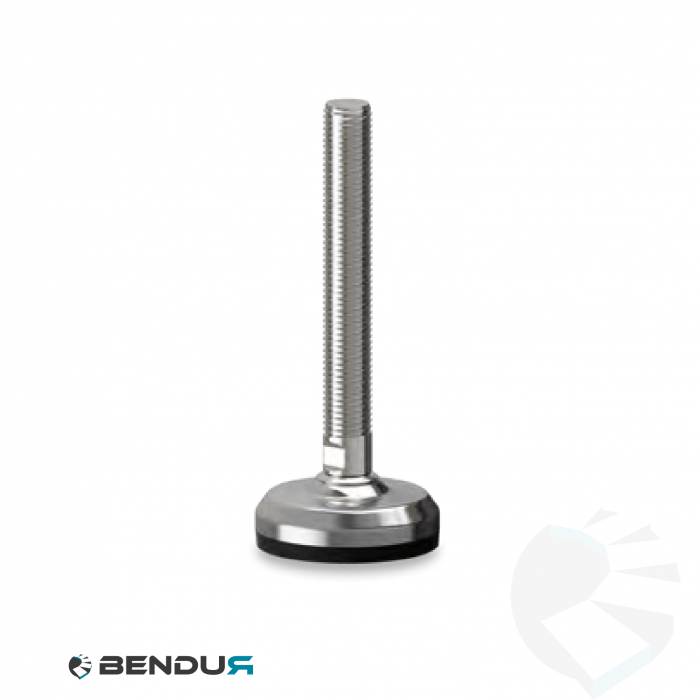

Leveling foot with machined baseplate & fully threaded ss spindle - Ø60 + ar
SKU CP-060702.14.00.001
This stainless steel leveling foot with anti-slip rubber features a fully machined base with a diameter of 60 mm and a spindle with full M10, M12, M16, or M20 thread. The total height of this leveling foot is 87.5 to 288.5 mm with a maximum load capacity of 3,000, 12,000, 30,000, or 45,000 N. It is ideally suited for industrial environments where a high level of hygiene and heavy loads are required. The stainless steel base and its distinctive shape guarantee high load resistance and excellent cleanability, even in critical conditions. The stainless steel washer ensures a complete seal between the spindle and the base plate.
As low as:
€38.00
€45.98
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | S400 HEAVY |
|---|---|
| Footplate diameter [mm] | 60 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 50.50 |
| Thread diameter [mm] | M10 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 80.50 |
| Thread diameter [mm] | M10 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 110.50 |
| Thread diameter [mm] | M10 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 50.80 |
| Thread diameter [mm] | M12 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 80.80 |
| Thread diameter [mm] | M12 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 110.80 |
| Thread diameter [mm] | M12 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 140.80 |
| Thread diameter [mm] | M12 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 51.30 |
| Thread diameter [mm] | M16 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 81.30 |
| Thread diameter [mm] | M16 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 111.30 |
| Thread diameter [mm] | M16 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 141.30 |
| Thread diameter [mm] | M16 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 191.30 |
| Thread diameter [mm] | M16 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 52.30 |
| Thread diameter [mm] | M20 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 82.30 |
| Thread diameter [mm] | M20 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 112.30 |
| Thread diameter [mm] | M20 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 142.30 |
| Thread diameter [mm] | M20 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 192.30 |
| Thread diameter [mm] | M20 |
| Product series | S400 HEAVY |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread length [mm] | 252.30 |
| Thread diameter [mm] | M20 |
Technical Information
| Weight [KG] | 0.19 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.22 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.22 |
|---|
| Weight [KG] | 0.25 |
|---|
| Weight [KG] | 0.27 |
|---|
| Weight [KG] | 0.23 |
|---|
| Weight [KG] | 0.27 |
|---|
| Weight [KG] | 0.31 |
|---|
| Weight [KG] | 0.35 |
|---|
| Weight [KG] | 0.42 |
|---|
| Weight [KG] | 0.27 |
|---|
| Weight [KG] | 0.33 |
|---|
| Weight [KG] | 0.38 |
|---|
| Weight [KG] | 0.44 |
|---|
| Weight [KG] | 0.54 |
|---|
| Weight [KG] | 0.66 |
|---|
Description
This stainless steel leveling foot with anti-slip rubber features a fully machined base with a diameter of 60 mm and a spindle with full M10, M12, M16, or M20 thread. The total height of this leveling foot is 87.5 to 288.5 mm with a maximum load capacity of 3,000, 12,000, 30,000, or 45,000 N. It is ideally suited for industrial environments where a high level of hygiene and heavy loads are required. The stainless steel base and its distinctive shape guarantee high load resistance and excellent cleanability, even in critical conditions. The stainless steel washer ensures a complete seal between the spindle and the base plate.
