Leveling foot with plastic baseplate & fully threaded spindle - Ø120 + ar
SKU CP-060702.01.00.201

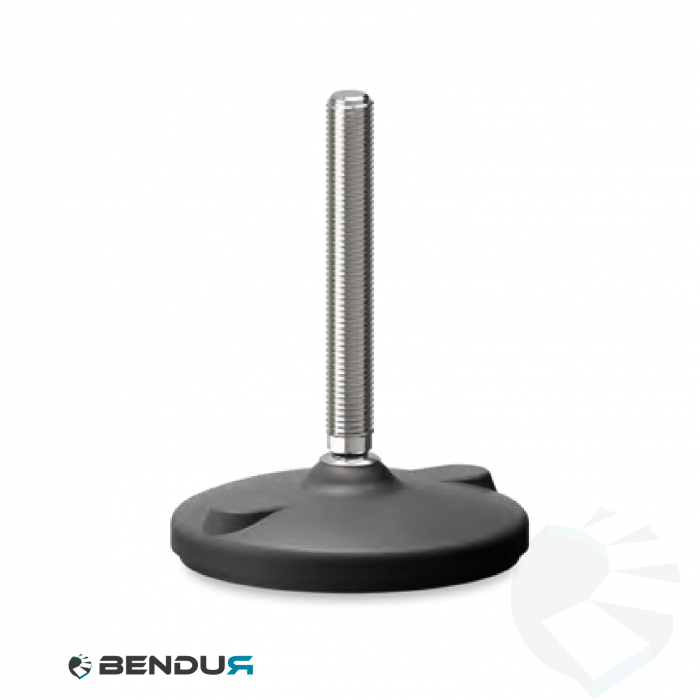

This leveling foot with floor fixing and anti-slip rubber features a plastic base with a diameter of 120mm and a spindle made of stainless steel or galvanized steel with full M16, M20, or M24 thread. The total height of this leveling foot is 103 to 228mm with a maximum load capacity of 15,000, 16,000, or 18,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
As low as:
€8.85
€10.71
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | P400R |
|---|---|
| Footplate diameter [mm] | 120 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 83 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 133 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 183 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 83 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 133 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 183 |
| Thread diameter [mm] | M24 |
Technical Information
| Weight [KG] | 0.21 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.34 |
|---|
| Weight [KG] | 0.21 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.34 |
|---|
| Weight [KG] | 0.29 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.49 |
|---|
| Weight [KG] | 0.29 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.49 |
|---|
| Weight [KG] | 0.38 |
|---|
| Weight [KG] | 0.53 |
|---|
| Weight [KG] | 0.67 |
|---|
| Weight [KG] | 0.21 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.34 |
|---|
| Weight [KG] | 0.24 |
|---|
| Weight [KG] | 0.31 |
|---|
| Weight [KG] | 0.38 |
|---|
| Weight [KG] | 0.29 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.49 |
|---|
| Weight [KG] | 0.29 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.49 |
|---|
| Weight [KG] | 0.38 |
|---|
| Weight [KG] | 0.53 |
|---|
| Weight [KG] | 0.67 |
|---|
Description
This leveling foot with floor fixing and anti-slip rubber features a plastic base with a diameter of 120mm and a spindle made of stainless steel or galvanized steel with full M16, M20, or M24 thread. The total height of this leveling foot is 103 to 228mm with a maximum load capacity of 15,000, 16,000, or 18,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
