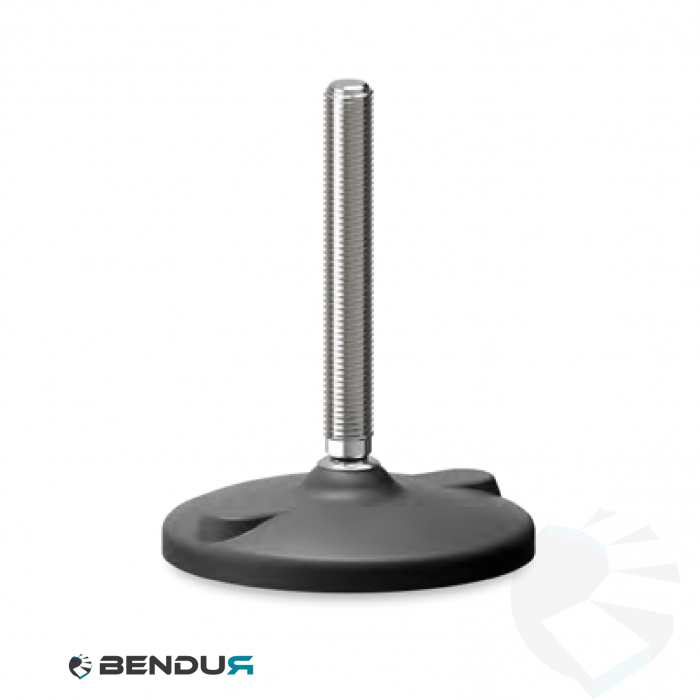

Leveling foot with plastic baseplate & fully threaded spindle - Ø120
SKU CP-060702.00.00.201
This floor-mounted leveling foot features a plastic base with a diameter of 120mm and a stainless steel or galvanized steel spindle with full M16, M20, or M24 thread. The total height of this leveling foot is 100 to 225mm with a maximum load capacity of 15,000, 16,000, or 18,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
As low as:
€5.75
€6.96
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | P400R |
|---|---|
| Footplate diameter [mm] | 120 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 83 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 133 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 183 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 83 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 133 |
| Thread diameter [mm] | M24 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 120 |
| Thread length [mm] | 183 |
| Thread diameter [mm] | M24 |
Technical Information
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.26 |
|---|
| Weight [KG] | 0.33 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.26 |
|---|
| Weight [KG] | 0.33 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.37 |
|---|
| Weight [KG] | 0.47 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.37 |
|---|
| Weight [KG] | 0.47 |
|---|
| Weight [KG] | 0.36 |
|---|
| Weight [KG] | 0.51 |
|---|
| Weight [KG] | 0.66 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.26 |
|---|
| Weight [KG] | 0.33 |
|---|
| Weight [KG] | 0.23 |
|---|
| Weight [KG] | 0.29 |
|---|
| Weight [KG] | 0.36 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.37 |
|---|
| Weight [KG] | 0.47 |
|---|
| Weight [KG] | 0.28 |
|---|
| Weight [KG] | 0.37 |
|---|
| Weight [KG] | 0.47 |
|---|
| Weight [KG] | 0.36 |
|---|
| Weight [KG] | 0.51 |
|---|
| Weight [KG] | 0.66 |
|---|
Description
This floor-mounted leveling foot features a plastic base with a diameter of 120mm and a stainless steel or galvanized steel spindle with full M16, M20, or M24 thread. The total height of this leveling foot is 100 to 225mm with a maximum load capacity of 15,000, 16,000, or 18,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
