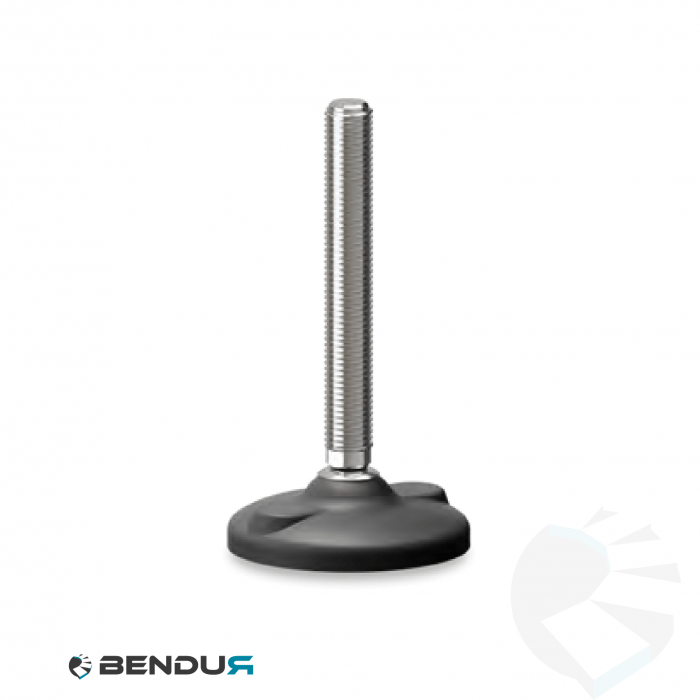

Leveling foot with plastic baseplate & fully threaded spindle - Ø80
SKU CP-060702.00.00.001
This floor-mounted leveling foot features a plastic base with a diameter of 80mm and a stainless steel or galvanized steel spindle with full M12, M16, or M20 thread. The total height of this leveling foot is 95 to 220mm with a maximum load capacity of 12,000, 15,000, or 16,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
As low as:
€4.55
€5.51
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | P400R |
|---|---|
| Footplate diameter [mm] | 80 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 67 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 117 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 167 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 67 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 117 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 167 |
| Thread diameter [mm] | M12 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 61 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 111 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 161 |
| Thread diameter [mm] | M16 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 84 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 134 |
| Thread diameter [mm] | M20 |
| Product series | P400R |
|---|---|
| Material | Polyamide |
| Footplate diameter [mm] | 80 |
| Thread length [mm] | 184 |
| Thread diameter [mm] | M20 |
Technical Information
| Weight [KG] | 0.08 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.16 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.18 |
|---|
| Weight [KG] | 0.25 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.18 |
|---|
| Weight [KG] | 0.25 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.30 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.30 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.08 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.16 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.18 |
|---|
| Weight [KG] | 0.25 |
|---|
| Weight [KG] | 0.12 |
|---|
| Weight [KG] | 0.18 |
|---|
| Weight [KG] | 0.25 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.30 |
|---|
| Weight [KG] | 0.39 |
|---|
| Weight [KG] | 0.20 |
|---|
| Weight [KG] | 0.30 |
|---|
| Weight [KG] | 0.39 |
|---|
Description
This floor-mounted leveling foot features a plastic base with a diameter of 80mm and a stainless steel or galvanized steel spindle with full M12, M16, or M20 thread. The total height of this leveling foot is 95 to 220mm with a maximum load capacity of 12,000, 15,000, or 16,000N. Extremely suitable for industrial environments where a moderately high level of hygiene is required.
