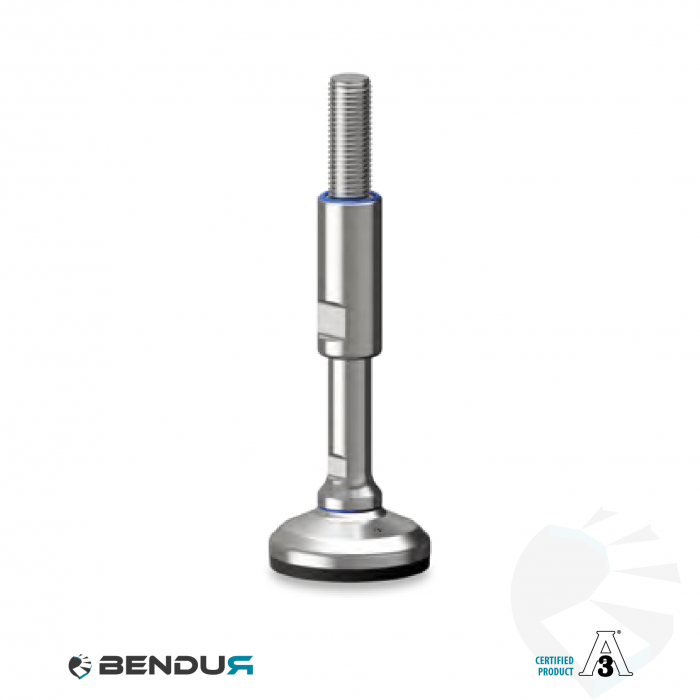

Leveling foot hygienic certified with overmolded sd baseplate - Ø60 + ar
SKU CP-060702.30.00.001
This stainless steel leveling foot with vulcanized anti-slip rubber features a cast base with a diameter of 60mm and a sealed spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 185 to 295mm with a maximum load capacity of 4,500N. The best choice for industrial environments with a critical hygiene level, such as in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel base and its special shape guarantee excellent cleanability, especially in critical conditions. The protected spindle offers 100% thread protection and prevents exposure to external agents.
As low as:
€41.55
€50.28
As low as:
Tip:
(calculated in the checkout)
Product Information
| Product series | C500 |
|---|---|
| Footplate diameter [mm] | 60 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M12 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M12 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M16 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M16 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M20 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M20 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M24 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M24 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M30 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M36 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M36 |
| Product series | C500 |
|---|---|
| Material | Stainless steel |
| Footplate diameter [mm] | 60 |
| Thread diameter [mm] | M36 |
Technical Information
| Weight [KG] | 0.27 |
|---|
| Weight [KG] | 0.30 |
|---|
| Weight [KG] | 0.40 |
|---|
| Weight [KG] | 0.47 |
|---|
| Weight [KG] | 0.56 |
|---|
| Weight [KG] | 0.65 |
|---|
| Weight [KG] | 0.80 |
|---|
| Weight [KG] | 0.95 |
|---|
| Weight [KG] | 1.25 |
|---|
| Weight [KG] | 1.49 |
|---|
| Weight [KG] | 1.77 |
|---|
| Weight [KG] | 1.81 |
|---|
| Weight [KG] | 2.15 |
|---|
| Weight [KG] | 2.55 |
|---|
Description
This stainless steel leveling foot with vulcanized anti-slip rubber features a cast base with a diameter of 60mm and a sealed spindle with hermetic seals M12, M16, M20, M24, M30, or M36. The total height of this leveling foot is 185 to 295mm with a maximum load capacity of 4,500N. The best choice for industrial environments with a critical hygiene level, such as in the dairy, food, chemical, and pharmaceutical sectors. The stainless steel base and its special shape guarantee excellent cleanability, especially in critical conditions. The protected spindle offers 100% thread protection and prevents exposure to external agents.
